Globe Valves: flat and conical seats

Valva - for flat seats		TSK - for conical seats
	Portable machines for grinding and lapping of sealing faces in valves, valve disks, flanges etc. An impressive concept of simple operation, wear-resistant tools, good price/performance ratio, high profitability and efficiency.		Portable machines with special tools for the grinding of conical sealing faces in high-pressure, shut-off and control valves. Fast and simple centring of the tools guarantees effective and high quality repair results. Seating Angles: 30°, 40°, 60°, 75°, 90°, others on request
DN 8 - 1600		DN 8 - 300

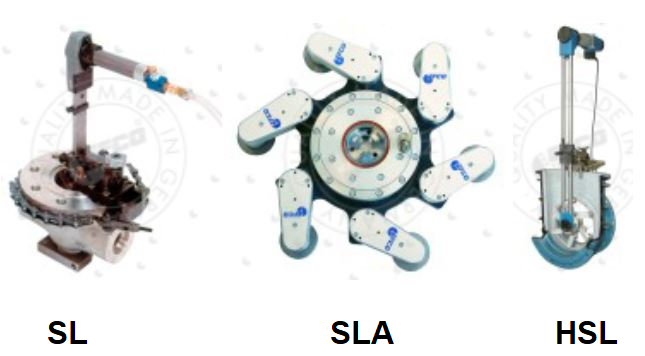

Gate Valves: Portable Machines for Sealing Faces

Portable machines for grinding and lapping of sealing faces in gate valves and non-return valves, gates and flanges. Optionally, these machines can be fitted with a digital rocker for contact pressure. This patented unit guarantees reproducibility and absolutely flat sealing faces. In addition, our valve grinding machines can be fitted with a swing-check adapter to enable machining of sealing faces on non-return valves with a large inclination. Hard seats can be machined with our portable high-speed valve grinding machine with driven spindles. This makes extremely fast and effective machining possible. This option can be retrofitted (SLA) on existing machines or can be supplied as a complete system. Fast setup and removal of the machines is guaranteed by means of a specially developed clamping block.

Work Range DN 10 – 2000

Ball Valve Lapping: Rotago

Stationary ball valve lapping machine for the simultaneous finishing of the ball and 2 metallic sealing rings. For small and medium-sized ball workpieces with diameters from 50 to 300 mm. It is suitable for a great variety of sealing seats and balls, i. e. floating ball, carried ball, etc., where surface shape and quality is of particular importance.

• Simultaneous lapping of all sealing parts
• Huge time savings compared to the manual lapping process

• Ensure an exact fit of ball and sealing seats

• Control speed of each drive continuously and independently

• Integrated metering device for steady distribution of lapping mixture

• Loading of large lapping workpieces from above

• Adjustable stroke of sealing seat movement

• Continued adjustable pressure control to regulate contact between valve seats and ball

• Drip container for used lapping mixture
• Door equipped with protection switch

• Timer with automatic shutoff

• Ergonomically adjustable control panel

Safety Valves: TSV

The EFCO TSV is a portable grinding and lapping machine with excenter for the machining of sealing faces of safety valves. The machine has two separate drives. This results in a cross-ground and absolutely flat sealing face.

Work range: DN 15 – 300 mm
